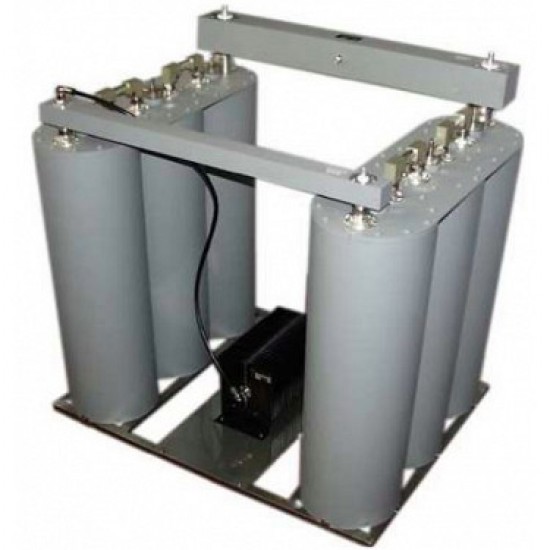

5+10KW FM CONSTANT IMPEDANCE COMBINER (TRIPLE CAVITY)

Features:

• Frequency range : 87.5 ÷ 108 [MHz]
• Filter type: Triple Cavity
• Input / Output impedance: 50 [Ohm]
• Retuen Loss by channels :  >26
• Max Power N.B :5000W
• Max Output Power 15000 W
• Insertion Loss N.B < 0.55dB
• Insertion Loss B.B < 0.2 dB
• Min. Distance between Ch. 0.8MHz
• Insulation between channels : N.B  > B.B: > 40 dB
•                                                  B.B  > N.B: > 40 dB
• Ambient Temperature range [° C] -10 ÷ 50
• Weight 85 kg
• Input narrowband EIA 7/8"
• Input broadband EIA 1 5/8"
• Output: EIA 1 5/8"
