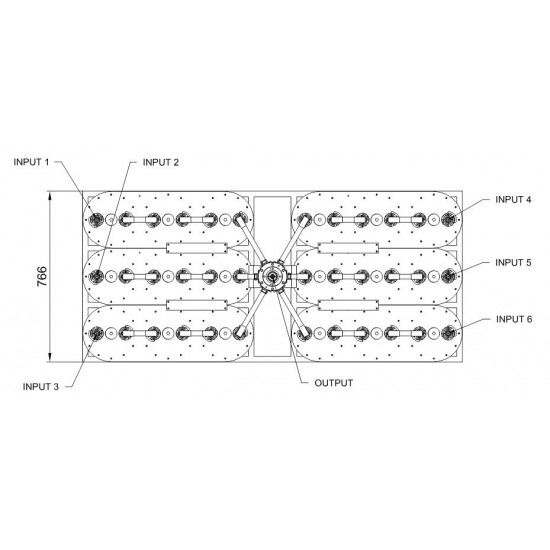

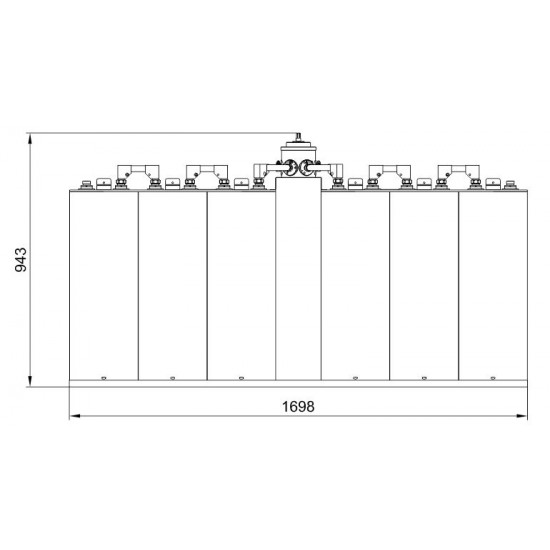

6x2 KW FM Star Point Combiner With Triple Cavity Filters

6x2 KW FM Star Point Combiner With Triple Cavity Filters
6x2 KW FM Star Point Combiner With Triple Cavity Filters
New 3 Weeks
6x2 KW FM Star Point Combiner With Triple Cavity Filters
6x2 KW FM Star Point Combiner With Triple Cavity Filters
6x2 KW FM Star Point Combiner With Triple Cavity Filters
Attributes
Connectors Inputs: Dın 7/16 Output: EIA 1-5/8
Frequency Range 87.5 ÷ 108 MHz
Electrical Characteristics
Input/Output Impedance 50 Ω
Return Loss by ch. (VSWR) > 26 dB
Min. Dist. between channels 1.2 MHz
Isolation Between Channels > 30 dB
Max. Output Power 12 kW
Max. Channel Input Power 2 kW
Mechanical Characteristics
Weight [kg.] ~220
Temperature range [C°] -10 ÷ +50 °C

Write a review

Please login or register to review
Based on 0 reviews. - Write a review
0.00€
  • Stock: 3 Weeks
  • Model: CFM6-2K/3
ONAIR ONAIR
Add to Cart
